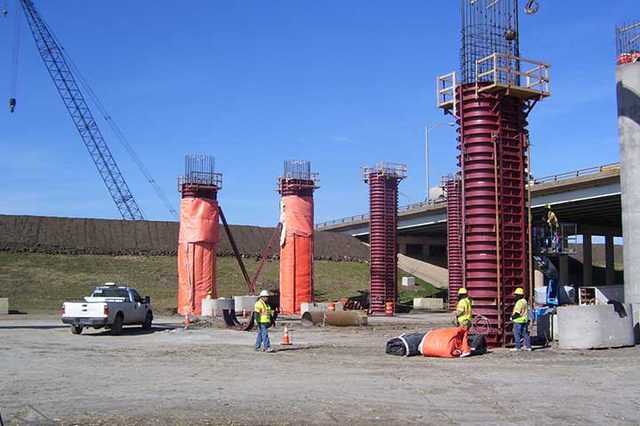

Symons Round Column Forms

All-steel Tower-Max® circular column forming system.

Forming — Round Column Forms

POUR PRESSURE 60″ dia. & under: up to 3,000 lbs. • 61″+ dia.: up to 2,000 lbs., depending on application
HEIGHT RANGE Stock heights 1′, 2′, 4′, 8′ (10′ at 30″ dia.); 13 diameters, 18″–96″
BRACING Bolts to Max-A-Form® STS; Brace Bracket at vertical stiffener points
BEST FOR Round columns, piers, bridge substructure
HANDLING Crane-handled via lifting eyes (20,000 lbs. 4-point / 15,000 lbs. compression-blocked)

Product Overview

Steel-Ply® is a pre-engineered, factory-built, reusable concrete forming system used in handset or gang form applications for commercial or residential structures. It forms walls of almost any shape or size, with accessories available for special structures and details, and is more productive and economical than job-built plywood formwork.

Setup and stripping require no measuring, sawing, drilling, or nailing — the only tool needed is a hammer — so crews reach full efficiency with minimal training. Panels and fillers use laminated plywood mounted on rugged steel frames and can be reused up to 200 times before re-plying. All components combine into a system rated up to 1,000 psf, depending on application, with a predictable safety factor over the service life of the form, and the lightweight design keeps gang form size limited only by crane capacity.
